Don’t sacrifice ANY MORE space! Stack them like you build blocks.

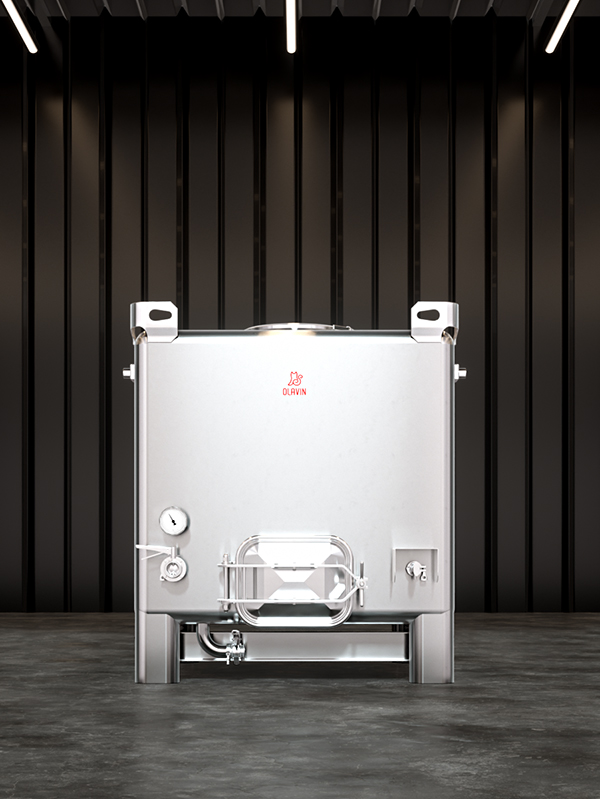

Stackable Square Tank
Code: D
Don’t sacrifice ANY MORE space!
Stack them like you build blocks.
Stackable Square Tank
Code: D
Stackable Square Tank
Features
Stackable Square Tank
Features
| Product Name: | Stackable Square Tank |
| Product Code: | D |
| Inner Surface: | 2B |
| Outer Surface: | Oil brushed |
| Inner Weld Seam Treatment: | Olavin Surpro Finish (Ra ≤ 0.6μm / 24μin) |
| Outer Weld Seam Treatment: | Retain weld bead height, pickled and passivated |
| Material: | ☑ All SS304 [Standard] ☑ Wetted parts SS316, others SS304 [Optional] |
| Jacket: | ☑ Olavin Dypple Jacket |
| Stackable: | Yes |
| Forkliftable: | Yes |
| Transportable: | Yes |
| Used for: | ☑ Fermentation ☑ Storage ☑ Aging ☑ Bottling |
| Connection: | ☑ Tri-clamp ☑ BSM ☑ DIN |
Stackable Square Tank
Capacities and Dimensions
Stackable Square Tank
Capacities and Dimensions
| Volume Litre | W mm | L mm | H1 mm | H mm |
|---|---|---|---|---|
| 1000 | 1060 | 1090 | 750 | 1320 |
| 1500 | 1090 | 1120 | 1000 | 1570 |
| 2000 | 1060 | 1090 | 1500 | 2070 |
* Customization is available.
| Volume Gal | W inch | L inch | H1 inch | H inch |
|---|---|---|---|---|
| 300 | 42 | 43 | 30 | 52 |
| 400 | 43 | 44 | 39 | 62 |
| 550 | 42 | 43 | 59 | 81 |
* Customization is available.
W – Max. Width
L – Max. Length
H1 – Shell Height
H – Total Height
* W – Max. Width | * L – Max. Length
* H1 – Shell Height | * H – Total Height
