Wine Fermentation Tank

wine making equipment-fermenter
Quality
Design
Cost

Customize the fermenter you need for your winery

Every part is well designed and unique

Features of Open Top Wine Fermenter

  • Ideal for fermenting small to medium parcels of red wine

  • Large skin contact area for better color extraction

  • No need to go to tank inside when dropping pomace

  • Heading down board available upon request

  • Robust self-supporting frame

  • Heavy duty stainless engineering access door

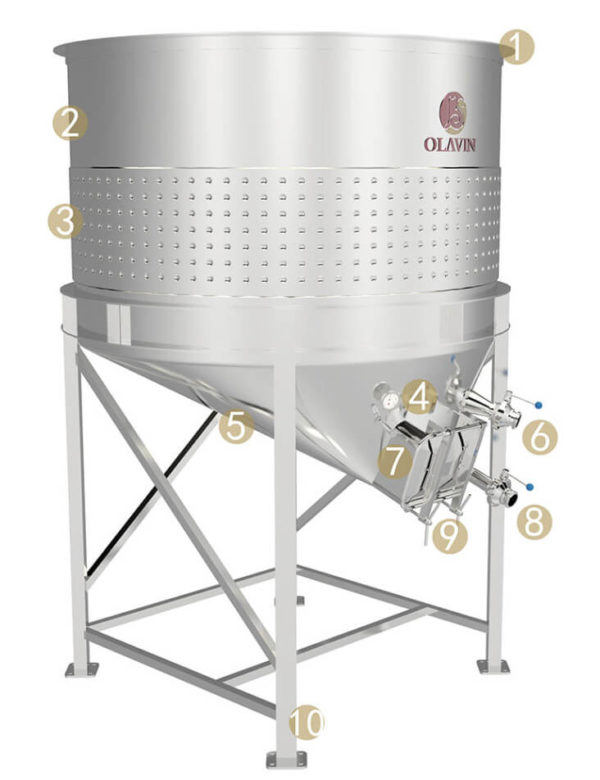

Components of Open Top Fermenter

open top fermenter

1. TOP ANGLE BAR
Formed by structural steel

2. TANK SHELL

3. DIMPLE PREFORMED JACKET
OLAVIN specially fabricated new generation jackets have 15% more service life than its previous generation.

4. THERMOWELL & THERMOMETER
Measuring range -20℃~+80℃

5. BOTTOM OFFSET CONE
3D models for accurate lase cutting, the inner surface is continuously smoothed and rounded, the shape is not deformed when fully loaded.

6. RACKING VALVE

7. SAMPLE VALVE
OLAVIN improved sample valve, no blocking nor foam are created when sampling.

8. DRAINAGE VALVE
Optimized structural design enables fast and complete drainage.

9. MASH DOOR
Size 535*413mm, with outwards opening door

10. SUPPORT LEGS

Click here to download the brochure of the open top conical bottom fermenter

Download

Features of Closed Top Fermenter

  • Multi-functional: the fermenter can be used for fermentation, storage, blending and aging

  • Big square door can easily fit the shape of rakes and shovels

  • Each tank is finished with butt to butt TIG welding to ensure sanitary needs

  • Optional CIP cleaning assembly

  • Only premium quality stainless steel 304 or 316L are used for tank fabrication

Choose the tank type according to your preference

We pursue the highest design and the best quality

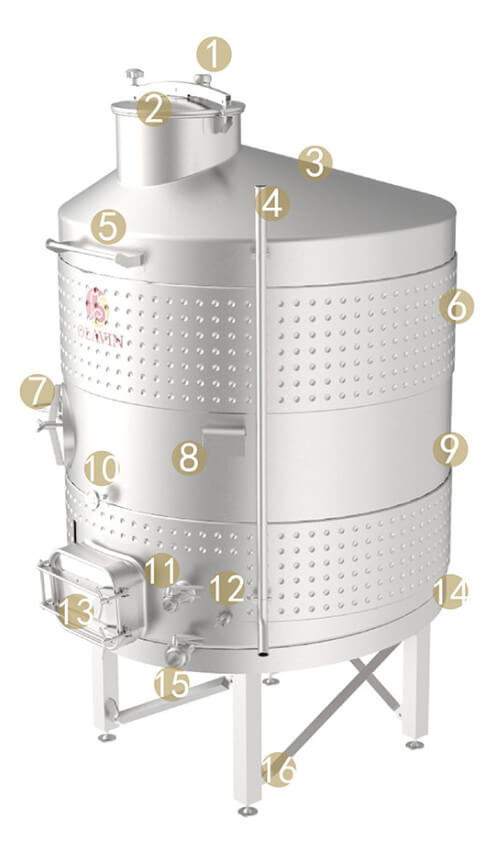

Components of Closed Top Fermenter

1. VENT
OLAVIN designed, stainless steel

2. TOP ENTRY
360° rotating lid, easy tank top operation

3. OFFSET CONICAL COVER
ANYSY optimized design to prevent collapse or distortion

4. PUMP OVER PIPE

5. LADDER SUPPORT

6. DIMPLE PREFORMED JACKET
OLAVIN specially fabricated new generation jackets have 15% more service life than its previous generation.

7. SIDE DOOR
Size 430*330, with inwards swing outwards opening door

8. THERMOSTAT

9. TANK SHELL

10. THERMOMETER & THERMOWELL
Measuring rang -20℃~+80℃

11. RACKING VALVE

12. SAMPLE VALVA
OLAVIN improved sample valve, no blocking nor foam are created when sampling.

13. MASH DOOR
Size 535*413mm, with outwards opening door

14. SLOPE BOTTOM

15. DRAINAGE VALVE

16. SUPPORT LEGS

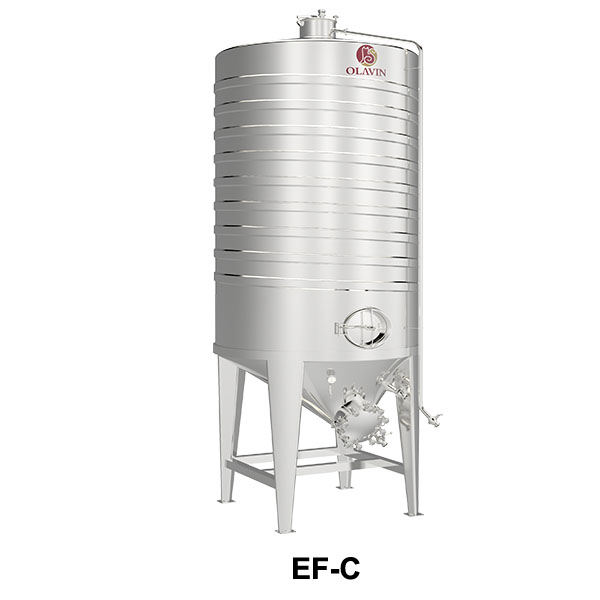

enclosed wine fermenter

Multiple Models for Choosing

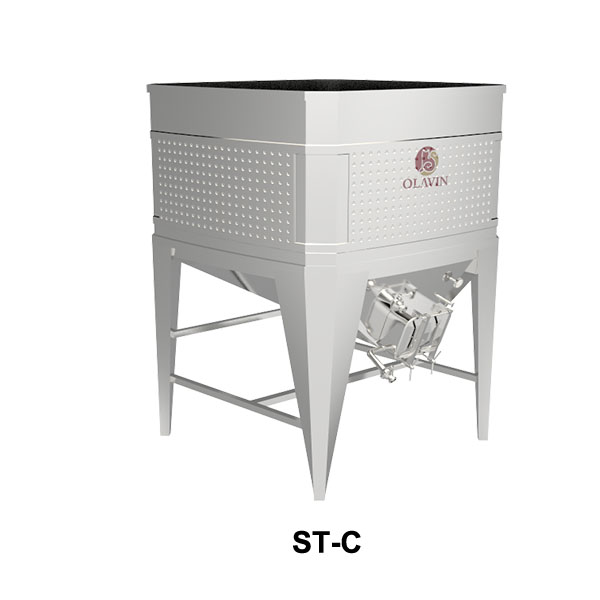

olavin square tank
forkliftable wine tank
wine storage tank with jacket
